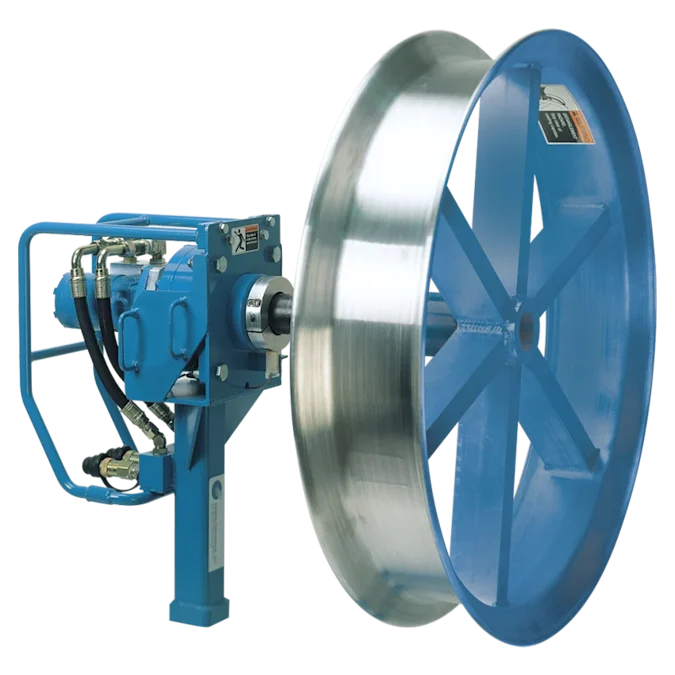

Fiber Optic Cable Puller Condux
Comes With Hydraulic Power Pack
Pricing available on request — contact us for a quote.
Contact for Quote
The Fiber Optic Cable Puller from Condux sets new standards for safe, accurate pulling of fiber optic cables. Only the Condux puller can offer load cell torque input for the most accurate tension measuring available. Unlike most hydraulic measuring systems, this system is not affected by changes in oil temperature, component age, or power source. That means the Condux Fiber Optic Cable Puller does not need to be recalibrated under different weather conditions.
From the very start, fiber optic cable installation has been a balancing act. Power vs precision. Bend, don't break. The Condux Fiber Optic Cable Puller showed the world the way to handle and install fiber optic cable safely and efficiently. It's simple, safe, and smart.
Standard Features: These pullers consist of a hydraulic motor and variable speed foot control. All pullers are calibrated for a maximum pull tension of 600 lbs. on a 30" capstan; maximum pull tension can be adjusted using the manually adjustable pressure relief valve.
Optional Features: Electronic tension control system with adjustable digital load limits and a load cell tension measuring device with a paperless recorder and trend display, compact flash drive with 64MB flash card and USB interface.
Easy to Set Up, Safe to Use: Components are modular, adding to versatility and operator safety.
Variable Speed Foot Control: Like the accelerator pedal in your car or truck, it allows the operator to easily manage the speed of the pull.
Warning: The Fiber Optic Cable Puller is not to be used as a hoist or for lifting, supporting, or transporting people or loads.
Specifications
- Ideal Application
- Fiber Optic Cable Installation
- Max Pull Tension
- 600 lbs on 30" capstan
- Power Source
- Hydraulic motor
- Control
- Variable speed foot control
- Calibration
- Load cell torque input
- Part Number
- 08690002
- Part Number (with ECB)
- 08690056
- Pressure
- 0-2,000 psi (0-138 bar)
- Flow
- 0-8 gpm (0-30 lpm)
- Peak Power
- 13 HP (9.7 kW)
- 12" (305 mm) Capstan
- Max Pull: 2,000 lbs (8,900 N) | Max Speed: 98 ft/min (30 m/min)
- 30" (762 mm) Capstan
- Max Pull: 900 lbs (4,000 N) | Max Speed: 74 ft/min (340 m/min)
- 42" (1,067 mm) Capstan
- Max Pull: 600 lbs (2,670 N) | Max Speed: 340 ft/min (100 m/min)
- 50" (1,270 mm) Capstan
- Max Pull: 540 lbs (2,400 N) | Max Speed: 410 ft/min (120 m/min)
- 62" (1,575 mm) Capstan
- Max Pull: 430 lbs (1,910 N) | Max Speed: 500 ft/min (150 m/min)
